$ 899.00
Discontinued/Replaced by AM4117MT-RFYW         The Dino-Lite Edge AM4115T-RFYW digital microscope is a unique handheld portable microscope that utilizes high intensity yellow LED’s for its excitation light source...
Availability: Out Of Stock
Sku: AM4115T-RFYW

Discontinued/Replaced by AM4117MT-RFYW

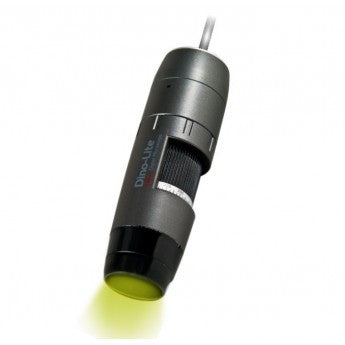

The Dino-Lite Edge AM4115T-RFYW digital microscope is a unique handheld portable microscope that utilizes high intensity yellow LED’s for its excitation light source with a 610nm emission filter that is designed for observation of red fluorescence, mainly mCherry, visualizing small blood or lymphatic vessels of an organ in microangiography analysis.

The image quality obtained with the Dino-Lite is comparable or superior to some traditional fluorescence microscope, but much less to difficult obtain and maintain. It is equipped with a 1.3 megapixel sensor and utilizes a rotatable magnification dial with a range of 20x - 220x depending of working distance with a scroll lock feature for assuring desired set magnification/ focus distance.

There is also a white LED light switchable by included software for aid in focus and location. The Dino-Lite Edge AM4115T-RFYW provides a valuable price per performance tool for researchers or users interested in observing red fluorescent specimens.

The AM4115T-RFYW uses the H11 housing which is the second generation housing for the Dino-Lite that incorporates: improved magnification dial movement for smooth and easy adjustment and focusing with the Dino-Lite, a scroll lock feature for assuring desired set magnification/ focus distance, and a cable strain relief (SR) that holds the Dino-Lite and its USB Cable together for greater resistance from pulls and twists.


Measurement Yes
Flexible LED Control No
Automatic Magnification Reading No
Extended Depth of Field No
Enhanced Dynamic Range No
Magnification Lock Yes
Body Material ABS Plastic
Microtouch Sensor Yes
LEDs Yellow (7), White (1)
Polarization No
Excitation Wavelength (LED) 575nm
Emission Wavelength (Filter) 610nm
Magnification Range 10x - 220x
Working Distance Standard
Lens Type Glass
Megapixels 1.3 MP
Image Save Formats (Windows) BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
Video Save Formats (Windows) WMV, FLV, SWF
Operating System Windows XP, Vista, 7, 8, 10, Mac OS 10.5+
Connection Type USB 2.0
Included Software DinoCapture 2.0 (Windows), DinoXcope (Mac OS)
Imaging Standards UVC
Sensor Type CMOS
Resolution 1280 × 1024 pixels
Frame Rate (max) 30 FPS
Dimensions 10.5cm (L) x 3.2cm (D) (4.13" x 1.26")
Weight 105g (3.7 oz)
Cable Length 182cm (71.65 in)
Package Includes Microscope, Carry Pouch, Software CD, Edge Calibration Target
Warranty Period 2 years
Manufactured in Taiwan
Service & Support U.S. (www.dinolite.us) English & Spanish
Regulatory Approval CE, FCC
