$ 899.00
Discontinued/replaced by AF4115T-GRFBY     The Dino-Lite Edge AM4115T-GRFBY digital microscope is optimized for research and viewing objects involving fluorescent objects using 2 different sets of LED’s, 4 Blue LEDs at...
Availability: Out Of Stock
Sku: AM4115T-GRFBY

Discontinued/replaced by AF4115T-GRFBY

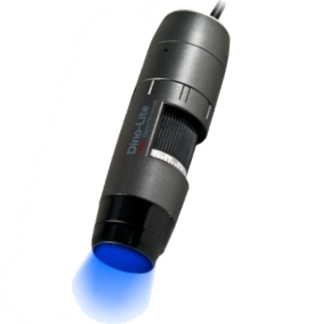

The Dino-Lite Edge AM4115T-GRFBY digital microscope is optimized for research and viewing objects involving fluorescent objects using 2 different sets of LED’s, 4 Blue LEDs at an excitation of 480nm and 4 Yellow LEDs at an excitation of 575nm which are switchable through the software, and emission at 510nm/610nm.

This model was designed for applications in which GFP and MCherry are being used in the same specimen, eliminating the need to switch microscopes and/or lighting and filters.

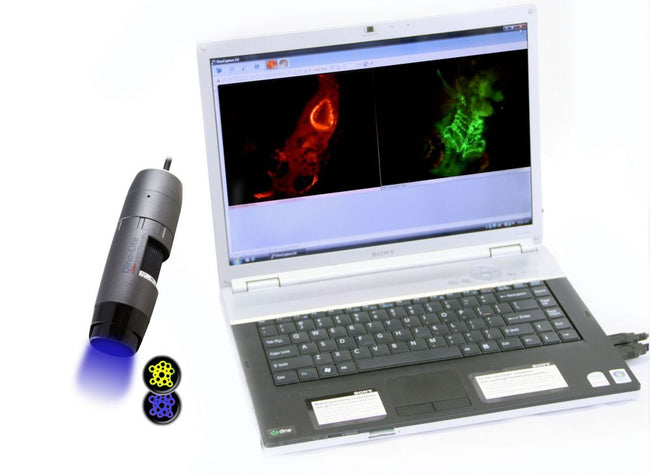

The AM4115T-GRFBY can magnify up to 220x magnifications depending of working distance. Green fluorescent objects pop out under this handheld microscope and you can clearly see its green glow.

The AM4115T-GRFBY uses the H11 housing which is the second generation housing for the Dino-Lite that incorporates: improved magnification dial movement for smooth and easy adjustment and focusing with the Dino-Lite, a scroll lock feature for assuring desired set magnification/ focus distance, and a cable strain relief (SR) that holds the Dino-Lite and its USB Cable together for greater resistance from pulls and twists.


Measurement Yes
Flexible LED Control No
Automatic Magnification Reading No
Extended Depth of Field No
Enhanced Dynamic Range No
Magnification Lock Yes
Body Material ABS Plastic
Microtouch Sensor Yes
LEDs Blue (4), Yellow (4)
Polarization No
Excitation Wavelength (LED) 480nm/570nm
Emission Wavelength (Filter) 510nm/610nm
Magnification Range 10x - 220x
Working Distance Standard
Lens Type Glass
Megapixels 1.3 MP
Image Save Formats (Windows) BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
Video Save Formats (Windows) WMV, FLV, SWF
Operating System Windows XP, Vista, 7, 8, 10, Mac OS 10.5+
Connection Type USB 2.0
Included Software DinoCapture 2.0 (Windows), DinoXcope (Mac OS)
Imaging Standards UVC
Sensor Type CMOS
Resolution 1280 × 1024 pixels
Frame Rate (max) 30 FPS
Dimensions 10.5cm (L) x 3.2cm (D) (4.13" x 1.26")
Weight 105g (3.7 oz)
Cable Length 182cm (71.65 in)
Package Includes Microscope, Carry Pouch, Software CD, Edge Calibration Target
Warranty Period 2 years
Manufactured in Taiwan
Service & Support U.S. (www.dinolite.us) English & Spanish
Regulatory Approval CE, FCC
