AM4115-FIT 1.3MP 850nm Infrared Microscope (Discontinued/replaced by AF4515-FIT)

$ 599.00
Discontinued/replaced by AF4515-FIT     The Dino-Lite Edge AM4115-FIT handheld digital microscope features 850nm infrared LED lighting. The AM4115-FIT views and records images at 1.3 Megapixels which lets you view...
Availability: Out Of Stock
Sku: AM4115-FIT

Discontinued/replaced by AF4515-FIT





The Dino-Lite Edge AM4115-FIT handheld digital microscope features 850nm infrared LED lighting. The AM4115-FIT views and records images at 1.3 Megapixels which lets you view objects with great image quality. This model can magnify at various magnifications depending of distance with a maximum magnification of 220x.
The MicroTouch feature on the handheld digital microscope gives users the option of taking a picture right from the scope itself. Included with the Dino-Lite handheld digital microscope is a copy of the "DinoCapture" software, enabling you to "capture" either a photograph, video, or time-lapsed video within a few simple clicks. This model can also perform measurement and measurement calibration for greater precision work.


Measurement Yes
Flexible LED Control No
Automatic Magnification Reading No
Extended Depth of Field No
Enhanced Dynamic Range No
Magnification Lock Yes
Body Material ABS Plastic
Microtouch Sensor Yes
LEDs Infrared (8)
Polarization No

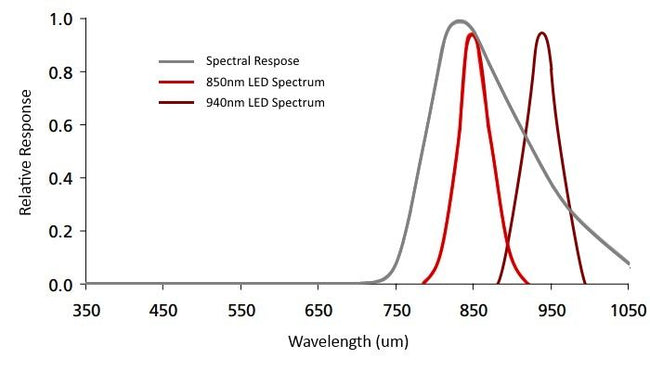

LED Spectrum 850nm
Magnification Range 10x - 220x
Working Distance Standard
Lens Type Glass
Megapixels 1.3 MP
Image Save Formats (Windows) BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
Video Save Formats (Windows) WMV, FLV, SWF
Operating System Windows XP, Vista, 7, 8, 10, Mac OS 10.5+
Connection Type USB 2.0
Included Software DinoCapture 2.0 (Windows), DinoXcope (Mac OS)
Imaging Standards UVC
Sensor Type CMOS
Resolution 1280 × 1024 pixels
Frame Rate (max) 30 FPS
Dimensions 10.5cm (L) x 3.2cm (D) (4.13" x 1.26")
Weight 105g (3.7 oz)
Cable Length 182cm (71.65 in)
Package Includes Microscope, Carry Pouch, Software CD, Edge Calibration Target, Alternate end caps
Warranty Period 2 years
Manufactured in Taiwan
Service & Support U.S. (www.dinolite.us) English & Spanish
Regulatory Approval CE, FCC
