$ 1,469.00
Compatible with Mac OS 10.9+ with AMR/FLC using DinoXcope version 1.19 or newer.*EDOF/EDR available on Windows PC only.     The AM73915MZT has a medley of features including USB 3.0...
Availability: 10 In Stock
Sku: AM73915MZT

Compatible with Mac OS 10.9+ with AMR/FLC using DinoXcope version 1.19 or newer.
*EDOF/EDR available on Windows PC only.

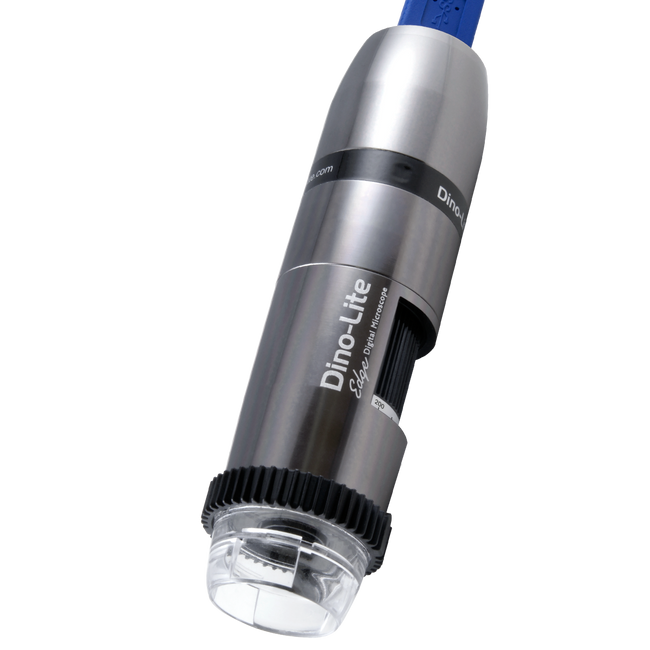

The AM73915MZT has a medley of features including USB 3.0 connection, aluminum alloy casing, 5-megapixel microscope camera, adjustable polarizer with image processing features; Extended Depth of Field (EDOF) and Extended Dynamic Range EDR; as well as Flexible LED Control. This has a Dino-Lite Edge Series standard working distance with a magnification range of 10x - 220x

EDOF & EDR is available on Windows computers only.

USB 3.0 provides the highest available USB framerate up to 45fps at 1.3MP.

Flexible LED Control (FLC) enables partial illumination to enhance edge contrast and provides intensity adjustment for better adaptability. Together with built-on polarizer, interchangeable front caps, and rugged metal housing, the AM73915MZT is made to be the tool of choice for wide range of applications.

To view a rough or multilevel surface with height range out of depth of focus, the AM73915MZT's EDOF capture mode can take several pictures at different focus and stack them automatically within a click. The resulted EDOF image maintains the picture quality from its original pictures which can be reviewed in DinoCapture 2.0.

For high contrast or reflective surface, the EDR capture mode can help to reveal the details of dark or bright areas, which may lost in normal capture mode, by stacking images taken at different exposure levels. The freely adjustable polarizer helps to reveal more detail or to enhance the contrast on the surface by reducing or eliminating the reflections.

This model has an interchangeable front cap design used in the Dino-Lite Edge series. Different caps have been developed for better adaptability for more applications. Simply removing the cap would yield more working distance which brings added convenience in the higher magnification range, or have better accessibility to the full range of magnification.

Together with built-on polarizer, interchangeable front caps, rugged metal housing, and features such as EDOF, EDR, AMR, and FLC; the AM73915MZT is made to be the tool of choice for wide range of applications.


Measurement Yes
Flexible LED Control Yes
Automatic Magnification Reading Yes
Extended Depth of Field Yes (Windows PC required)
Enhanced Dynamic Range Yes (Windows PC required)
Magnification Lock Yes
Body Material Aluminum Alloy
Microtouch Sensor Yes
LEDs White (8)
Polarization Yes
Magnification Range 10x - 220x
Working Distance Standard
Lens Type Glass
Megapixels 5 MP
Image Save Formats (Windows) BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
Image Save Formats (Mac OS) JPEG, PNG
Operating System Windows 7, 8, 10, Mac OS 10.9+
Connection Type USB 3.0
Included Software DinoCapture 2.0 (Windows), DinoXcope (Mac OS)
Imaging Standards UVC
Sensor Type CMOS
Resolution 2560 x 1920 pixels
Frame Rate (max) 45 FPS
Dimensions 11.9cm (L) x 3.3cm (D)
Weight 110g (3.88oz)
Cable Length 182cm (71.65 in)
Package Includes Microscope, Software CD, Edge Calibration Target, Alternate end caps, USB
Warranty Period 2 years
Manufactured in Taiwan
Service & Support U.S. (www.dinolite.us) English & Spanish
Regulatory Approval CE, FCC
