$ 1,069.00

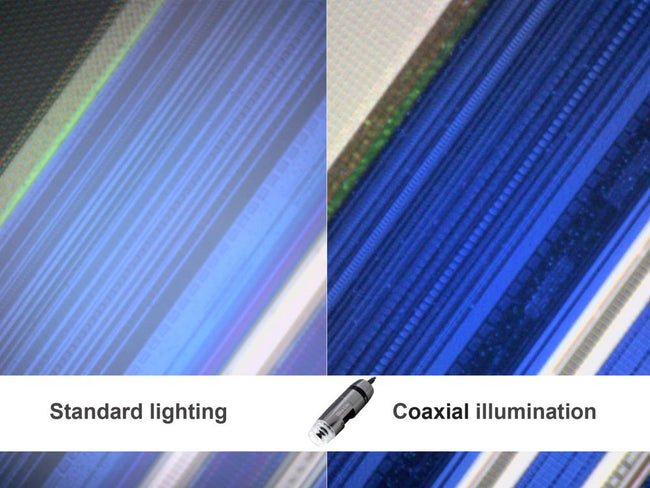

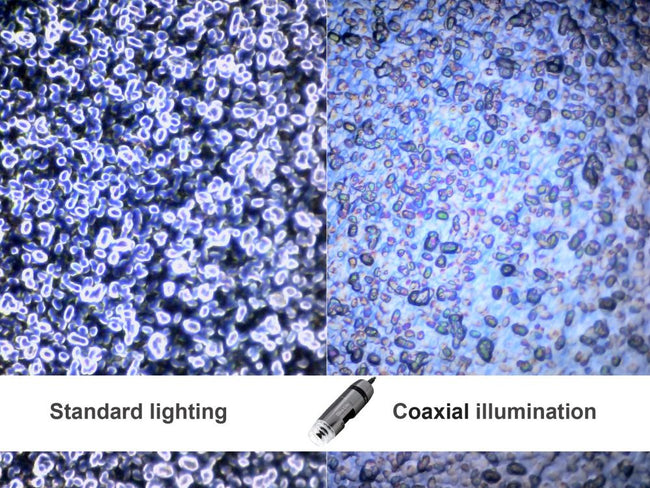

The 5MP Edge AM7515MT1A has a remarkably compact design with a built-in coaxial light, delivering exceptional brightfield images at 70x - 140x magnifications. Through the use of Flexible LED Control...
Availability: 10 In Stock
Sku: AM7515MT1A

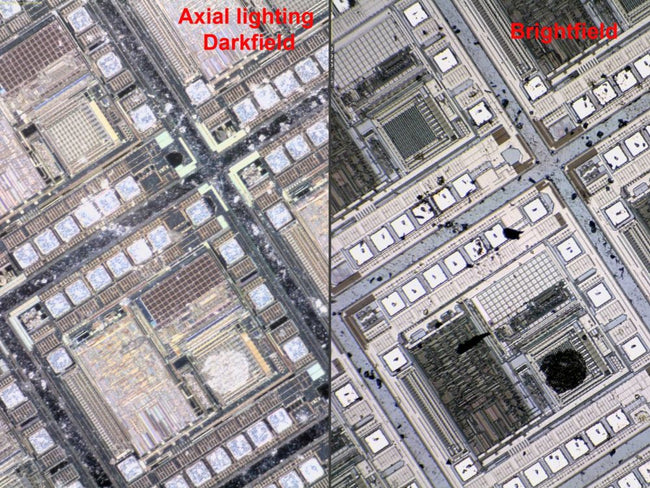

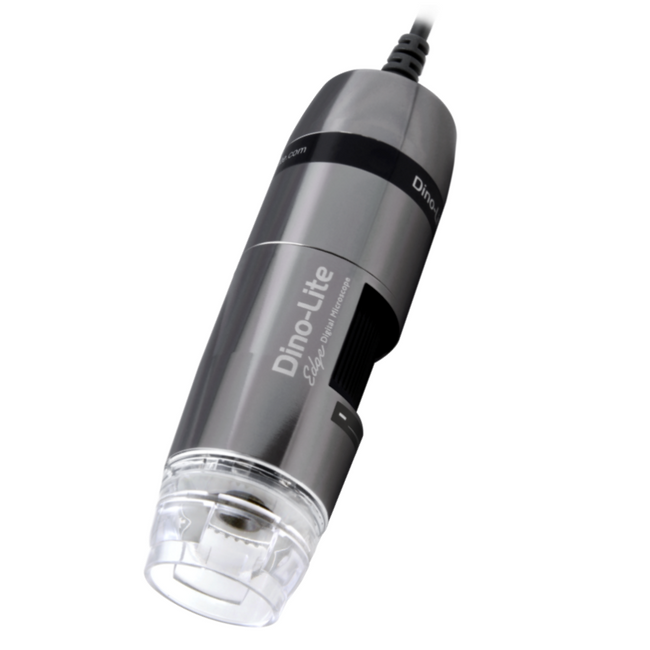

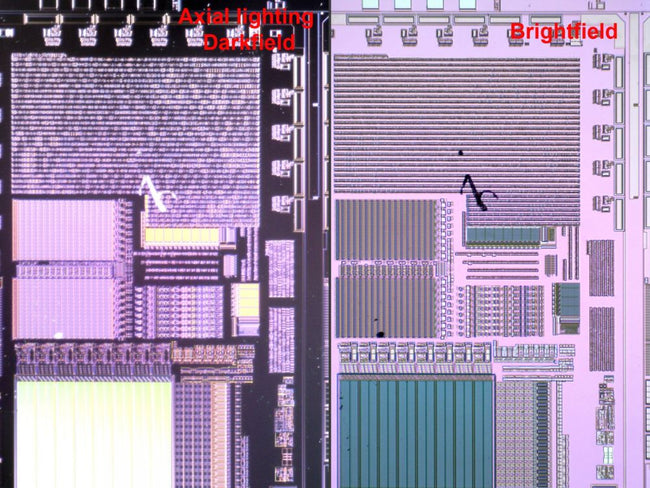

The 5MP Edge AM7515MT1A has a remarkably compact design with a built-in coaxial light, delivering exceptional brightfield images at 70x - 140x magnifications. Through the use of Flexible LED Control (FLC), the AM7515MT1A is capable of switching between brightfield and darkfield for more details making it suitable for the inspection of reflective surfaces and topographical features —edges, pores, dents, and scratches.

Taking advantage of Automatic Magnification Reading (AMR), the AM7515MT1A may optimize the measurement with efficiency and accuracy for catering the needs of most measuring tasks.


Measurement Yes
Flexible LED Control Yes
Automatic Magnification Reading Yes
Extended Depth of Field No
Enhanced Dynamic Range No
Magnification Lock Yes
Body Material Aluminum Alloy
Microtouch Sensor Yes
LEDs White (8)
Axial Yes
Polarization No
Magnification Range 70x - 140x
Working Distance Standard
Lens Type Glass
Megapixels 5 MP
Image Save Formats (Windows) BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
Video Save Formats (Windows) WMV, FLV, SWF
Operating System Windows XP, Vista, 7, 8, 10, Mac OS 10.9+
Connection Type USB 2.0
Included Software DinoCapture 2.0 (Windows), DinoXcope (Mac OS)
Imaging Standards UVC
Sensor Type CMOS
Resolution 2592 × 1944 pixels
Frame Rate (max) 30 FPS
Dimensions 10.5cm (L) x 3.2cm (D) (4.13" x 1.26")
Weight 135g (4.76oz)
Cable Length 182cm (71.65 in)
Package Includes Microscope, Software CD, Edge Calibration Target
Warranty Period 2 years
Manufactured in Taiwan
Service & Support U.S. (www.dinolite.us) English & Spanish
Regulatory Approval CE, FCC
