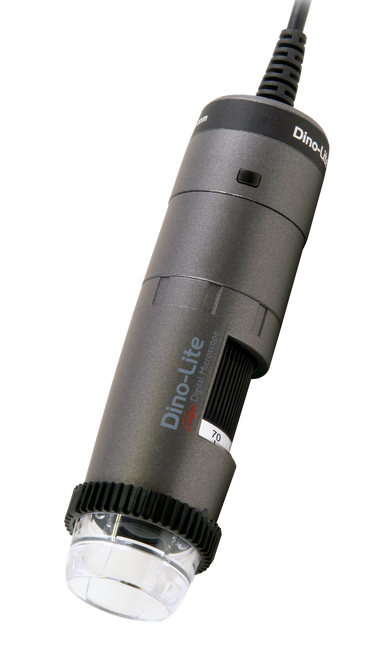

AF4115TF 1.3MP Extra-Long Working Distance

$ 699.00
The Dino-Lite AF4115TF Edge Series Extra-long Working Distance (ELWD) model is designed to provide extra-long working distance with a magnification range of 1x - 70x. At 10x with 19" working...
Availability: 10 In Stock
Sku: AF4115TF

The Dino-Lite AF4115TF Edge Series Extra-long Working Distance (ELWD) model is designed to provide extra-long working distance with a magnification range of 1x - 70x. At 10x with 19" working distance and 70" at 4.25". With Edge optics quality, the ELWD lens reveals minute details with minimum 108mm working distance at maximum magnification of 70x, making it well-suited for observations requiring ample space between microscope and object.

AF4115TF is an updated model that replaced the AM4115TF which now also includes FLC, Flexible LED Control. The FLC maximizes illumination flexibility by offering independent on/off control of the four LED quadrants in addition to the 6-levels intensity adjustment capability. The updated model includes the adaptable interface providing the capability of transforming Dino-Lite into a wireless microscope when attaching with WF-20.


Measurement Yes
Flexible LED Control Yes
Automatic Magnification Reading No
Extended Depth of Field No
Enhanced Dynamic Range No
Magnification Lock Yes
Body Material ABS Plastic
Microtouch Sensor Yes
LEDs White (8)
Polarization No
Magnification Range 10x - 70x
Working Distance Extra-long
Lens Type Glass
Megapixels 1.3 MP
Image Save Formats (Windows) BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
Image Save Formats (Mac OS) JPEG, PNG
Operating System Windows XP, Vista, 7, 8, 10, Mac OS 10.5+
Connection Type USB 2.0
Included Software DinoCapture 2.0 (Windows), DinoXcope (Mac OS)
Imaging Standards UVC
Sensor Type CMOS
Resolution 1280 × 1024 pixels
Frame Rate (max) 30 FPS
Dimensions 10.5cm (L) x 3.2cm (D) (4.13" x 1.26")
Weight 105g (3.7 oz)
Cable Length 182cm (71.65 in)

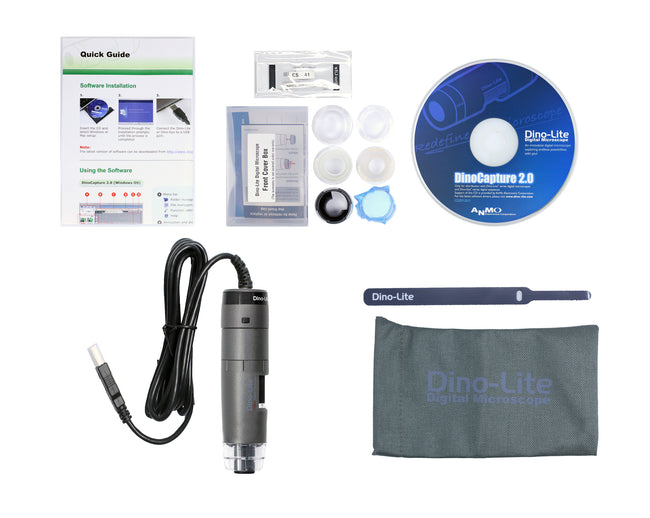

Package Includes Microscope, Software CD
Warranty Period 2 years
Manufactured in Taiwan
Service & Support U.S. (www.dinolite.us) English & Spanish
Regulatory Approval CE, FCC

Shipping & Delivery

Orders placed before 3:00 P.M. Pacific Time, generally ship on the same day. Orders placed after the daily deadline will ship the following business day. Unless a UPS or FedEx shipping account is provided, the shipping courier (UPS, FedEx, USPS) used for your order may vary at our discretion.

To use your own shipping account, please add this Special shipping option to your cart. You must specify your desired shipping method and Account number in the "Order Notes" section of your shopping cart.

International Orders

The recipient is responsible for any and all duties, taxes, and other customs charges assessed by the importing country.

Warranty & Guarantee

Dino-Lite Microscopes include a 2-Year Warranty. Accessories include a 1-Year Warranty.

We offer a 30-day return/exchange period to ensure the product you select is the right fit for your application. Returns or exchanges within 30 days of purchase are offered no-questions-asked, simply contact us and we'll be glad to help you sort it out.
