$ 1,069.00
Dedicated to provide ample space to work under, the AM7115MZTL, a Longer Working Distance (LWD) version of Dino-Lite 5MP Edge series, delivers a superior image at 10x - 140x magnification...
Availability: 10 In Stock
Sku: AM7115MZTL

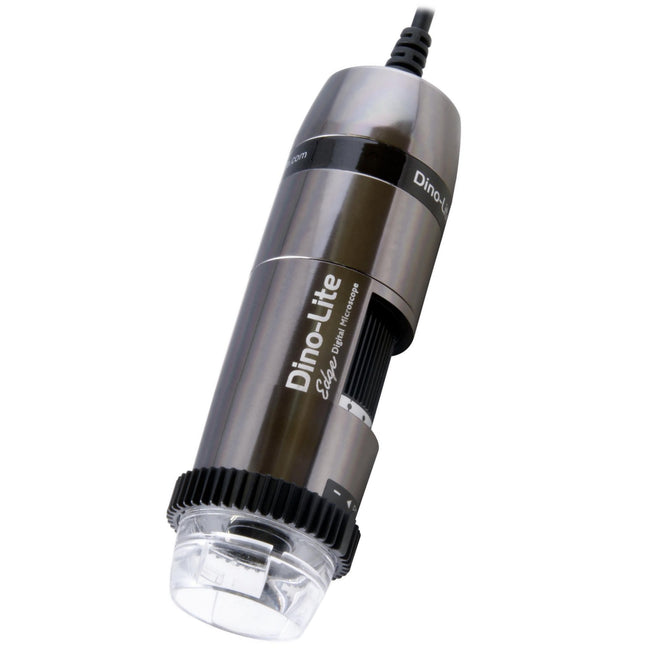

Dedicated to provide ample space to work under, the AM7115MZTL, a Longer Working Distance (LWD) version of Dino-Lite 5MP Edge series, delivers a superior image at 10x - 140x magnification with greatest illumination flexibility. The AM7115MZTL is able to provide long working distance with fluent and crisp live imaging through the use of cutting-edge optics, advanced 5MP sensor, and low-loss MJPEG compression. The innovative Flexible LED Control (FLC) enables partial illumination to enhance edge contrast and provides intensity adjustability for better adaptability. Together with the built-on adjustable polarizer, interchangeable front caps, rugged metal housing, the AM7115MZTL is made to be the tool of choice for wide range of applications.


Measurement Yes
Flexible LED Control Yes
Automatic Magnification Reading No
Extended Depth of Field No
Enhanced Dynamic Range No
Magnification Lock Yes
Body Material Aluminum Alloy
Microtouch Sensor Yes
LEDs White (8)
Polarization Yes
Magnification Range 10x - 140x
Working Distance Long
Lens Type Glass
Megapixels 5 MP
Image Save Formats (Windows) BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
Image Save Formats (Mac OS) JPEG, PNG
Operating System Windows XP, Vista, 7, 8, 10, Mac OS 10.5+
Connection Type USB 2.0
Included Software DinoCapture 2.0 (Windows), DinoXcope (Mac OS)
Imaging Standards UVC
Sensor Type CMOS
Resolution 2592 × 1944 pixels
Frame Rate (max) 30 FPS
Dimensions 10.5cm (L) x 3.2cm (D) (4.13" x 1.26")
Weight 135g (4.76oz)
Cable Length 182cm (71.65 in)
Package Includes Microscope, Carry Pouch, Software CD, Edge Calibration Target, Alternate end caps
Warranty Period 2 years
Manufactured in Taiwan
Service & Support U.S. (www.dinolite.us) English & Spanish
Regulatory Approval CE, FCC


Shipping & Delivery

Orders placed before 3:00 P.M. Pacific Time, generally ship on the same day. Orders placed after the daily deadline will ship the following business day. Unless a UPS or FedEx shipping account is provided, the shipping courier (UPS, FedEx, USPS) used for your order may vary at our discretion.

To use your own shipping account, please add this Special shipping option to your cart. You must specify your desired shipping method and Account number in the "Order Notes" section of your shopping cart.

Warranty & Guarantee

Dino-Lite Microscopes include a 2-Year Warranty. Accessories include a 1-Year Warranty.

We offer a 30-day return/exchange period to ensure the product you select is the right fit for your application. Returns or exchanges within 30 days of purchase are offered no-questions-asked, simply contact us and we'll be glad to help you sort it out.
